BREATHER ADAPTERS

Protect the breather from oil contamination

BREATHER ADAPTER KITS

Breather Adapter Kits are available in a dark grey colour and configured with colourised Quick Connects or no Quick Connects or with ISO-B Quick Connects. Colourised Quick Connects have been inspected to ensure anodised colours are within OilSafe colour spectrum scope. Colour and shade can vary on anodised components, this will not impact performance of product.


Colour-coded quick connects

Breather Adapter Kits Line-up

Drum adapter kits with colour coded quick connects

Drum

Adapter Kit

Drum Adapter Kits allow breathers to be installed on any storage tank or drum.


Tell me more
Gearbox adapter kits

Gearbox

Adapter Kit

Gearbox Adapter Kits allow breathers to be installed on any gearbox.



Tell me more
Hydraulic adapter kits

Hydraulic Reservoir

Adapter Kit

Hydraulic Reservoir Adapter Kits allow breathers to be installed on any hydraulic fluid tank or reservoir.
Tell me more
Domed flange adapter kit

Domed Flange

Adapter Kit

Domed Flange Adapters provide a low profile yet rugged way to mount a 1" NPT breather to a hydraulic reservoir.
Tell me more

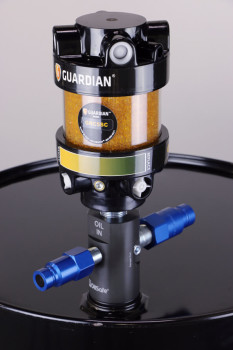

Drum Adapter Kits

Drum Adapter Kits allow breathers to be installed on any storage tank or drum; there's never been a cleaner, more effective way to store, filter and pump lubricants from a drum.


Its unique design ensures all fluid handling is managed through one adapter, while maintaining the storage container integrity.

  •  Anodised aluminum adapter comes in a dark gray colour and configures with: no Quick Connects, ISO-B Quick Connects or Colourized Quick Connects for pumping oil in and out of drum.
  • Sample port for fluid analysis.
  • Gauge port to monitor air pressure.
  • Stainless steel pipe - 3/4" and 1/2".
  • Dispensing through ISO-B or Colourized Quick Disconnects - Available in 10 familiar OilSafe colours or silver.
  • Mounting Connection - 2" MNPT.


Offline filtration units easily connect to the adapter without ever disrupting the performance of the breather.


Specification of the Drum Adapter Kit:


Height
4,80"

Diameter
2,5"

Mounting connection
2" MNPT

Quick connect (2) poppet style
Oil in: 1/2"
Oil out: 3/4"

Sample port
Model A651

Gauge Port
Model A655

Pipe ⌀/Length inch
Oil in: 0.5” x 12”
Oil out: 0.75” x  32”

Drum adapter kits with colour coded quick connects

OilSafe

Benefits

  • Customisable
  • Seamless connection between your equipment and filtration system
  • Utilising a desiccant breather will prevent the ingression of dirt and moisture.

Drum adapter kits with colour coded quick connects

Typical Industries
  • Automotive
  • Pulp & Paper
  • Steel Production/Manufacturing
  • Food & Beverage
  • General Manufacturing
  • Mining/Construction
  • Power Generation
  • Petroleum/Chemical Refining

Breather Adapter Kits brochure

Breather Adapter Kits Flyer

Gearbox Adapter Kits

Gearbox Adapter Kits allow breathers to be installed on any gearbox. Anodised aluminum adapters have colourised quick connects available in three sizes for pumping oil in and out without opening the gearbox to atmosphere. Offline filtration, oil changes and sampling can be handled through the adapter. They are a faster, simpler and cleaner way to handle gear oils and reduce ingression.


Gearbox Adapter Kits are available in a dark gray colour and configured with no Quick Connects, ISO-B Quick Connects or Colourised Quick Connects* available in 10 familiar OilSafe colours or silver.


Specification of the Gearbox Adapter Kit:


Height
1", 3/4", 1/2" adapter3"


Diameter
1" and 3/4" adapter1,75"
1/2" adapter1.25"


Mounting connection
1" adapter1" MNPT
3/4" adapter3/4" MNPT
1/2" adapter1/2" MNPT


Quick connect pop it style
Oil in: 1/2"
Oil out: 3/4"


Sample port model A651Yes

Gearbox adapter kit blue

OilSafe

Benefits

  • Customisable
  • Seamless connection between your equipment and filtration system
  • Utilising a desiccant breather will prevent the ingression of dirt and moisture.
Typical Industries
  • Automotive
  • Pulp & Paper
  • Steel Production/Manufacturing
  • Food & Beverage
  • General Manufacturing
  • Mining/Construction
  • Power Generation
  • Petroleum/Chemical Refining
OilSafe Breather adapter kits

Hydraulic Reservoir Adapter Kits

Hydraulic Reservoir Adapter Kits allow breathers to be installed on any hydraulic fluid tank or reservoir. Anodised aluminum adapters have colourised quick connects for pumping oil in and out, allowing the system to remain closed at all times and dramatically reducing contamination while improving oil-handling safety.


Offline filtration units easily connect to adapter without ever disrupting the performance of the breather or opening the tank.



Specification of the Hydraulic Reservoir Adapter Kit:


Height
1,85"

Diameter
3,25"

Mounting connection
1" MNPT

Sample port
Model A651

Gauge Port
Model A655

Pipe ⌀/Length inch
Oil in: 0.5” x 12”
Oil out: 0.75” x  32”

Hydraulic reservoir adapter kits

OilSafe

Benefits

  • Customisable
  • Seamless connection between your equipment and filtration system
  • Utilising a desiccant breather will prevent the ingression of dirt and moisture.
Typical Industries
  • Automotive
  • Pulp & Paper
  • Steel Production/Manufacturing
  • Food & Beverage
  • General Manufacturing
  • Mining/Construction
  • Power Generation
  • Petroleum/Chemical Refining

Domed Flange Adapter Kit

Domed Flange Adapters provide a low profile yet rugged way to mount a 1" NPT desiccant breather to a hydraulic reservoir.


The adapter includes six hole ANSI pattern gasket and fasteners for perfect replacement of bayonet flange and vent cap.


The beveled surface directs spills and contaminants away from the opening.


Available in a dark gray colour.



Specification of the Domed Flange Adapter Kit:


Height

  • 0.75 (1.9)


Diameter

  • 3.5 (8.89)


Mounting Connection

  • ANSI 6 hole pattern flange


Screws and Gasket

  • Yes

Domed flange adapter kit

OilSafe

BREATHER ADAPTERS FOR EASY INSTALLATION

Slip fit flange adapter

Flange adapters

Flange adapters used with breathers having a 1” slip-fit connection, are used for reservoirs where the tank wall is not thick enough to allow for tapping threads. With the Model A101 adapter, mounting holes can be drilled in the high impact ABS molded flange to mate with any required hole pattern. The Model A114 flange adapter has a standard ANSI 6-hole pattern pre-drilled for mounting.

Slipfit threaded adapters

Threaded adapters

Threaded adapters, suitable for use with Air Sentry breathers that have a 1” slip fit connection, are intended for reservoirs or gearboxes with a wall thickness sufficient for a tapped hole. Male and female NPT and male BSP thread versions are available.

Slip fit bayonet adapter

Bayonet adapter

The bayonet adapter replaces a standard breather cap on a hydraulic reservoir. Simply remove the breather cap, place the bayonet adapter on the breather flange, and rotate one-quarter turn. No tank modification is required. Bayonet adapters fit Air Sentry breathers with a 1” slip-fit connection.
Slip Fit Threaded spin-on Adapter

Threaded spin-on adapters

Threaded spin-on adapters replace the standard spin-on particle filters made by many manufacturers. These adapters fit Air Sentry breathers with 1” slip-fit connections, are available in different sizes, and thread configurations. No tank modifications are required.
Threaded Metal Adapter

Threaded metal adapters

Threaded metal adapters fit the X100 and any Z-series breather. The breather connection is ½” male NPT while a variety of reservoir connection types are available.

Download the Breather Adapter Documentation on the left.
